0.7-1.2mm Squre Delta Tube Roll Forming Machine With Elbow Device

Ask Lasest Price
Brand Name :	Sussman
Model Number :	SM-RS
Certification :	CE/ISO9001
Price :	USD25000-45000
Payment Terms :	L/C, D/A, D/P, T/T
Supply Ability :	10 sets/ per months
Delivery Time :	60-90 days

Add to Cart

Product Details
Company Profile

0.7-1.2mm Squre Delta Tube Roll Forming Machine With Elbow Device

Number	Items	UnitType	RF-SD
1	Steel Thickness	mm	0.5-0.6mm
2	Forming Speed	m/min	8-12
3	Roller stands	stand	24 stands
4	Roller Material	mm	45# steel, coated with chrome quenching
	Shaft material and diameter	mm	Ф76 45# steel, coated with chrome
5	Main Motor Power	Kw	7.5
6	Hydraulic cutting Power	Kw	4
7	Hydraulic pressure	Mpa	12
8	Power Supply		380V, 50HZ,3 phase
9	Tolerance	mm	1.5
10	Material of cutting		Cr12mov HRC60-62
11	Control system		PLC with touch screen
12	Machine net weight	T	15

Profile

0.7-1.2mm Squre Delta Tube Roll Forming Machine With Elbow Device

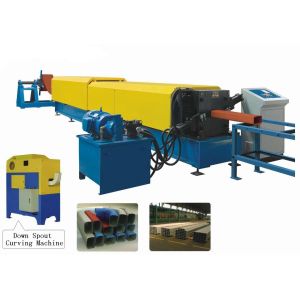

1.This machine is made up of roll forming machine,manual
decoiler,cutting machine,PLC computer control and hydraulic
system,out put tables.

2.The machine is stable,no noise,no leak of hydraulic oil.

3.It is one unit, the control box and the hydraulic station for the
cutting are all put under the machine frame to save space.

4.The touch screen is hang over, it is not under the floor.
5.When you get the machine,it is no need to assemble and connect
the complicate cable of the machine, you only need to connect one
main cable, then the machine is working.

Detailed Images

3 ton decoiler

Oil pump statio:1set.
Hydraulic power: 4 kw hydraulic system.
Blade Material: CR12Mov with heat treatment HRC58-62.
Tolerance: +-1.5mm

Cutting way: hydraulic stop cutting

Senor: Panasonic

Power supplier: 380V, 50 Hz, Three Phase (adjusted with the requestment)
Length & quantity measurement automatically;
Length & quantity controlled by PLC
Length inaccuracy can be amended easily.
Control panel: Button-type switch and touch screen
The language in the touch screen: English and Chinese
Unit of length: millimeter (switched on the control panel)

Outside table

1. It adopts welded steel and supported roller to transmit the products.

2. Size: 4000*1000*1000mm, the size can be 6 meters long.

3. We can also offer you the auto stacker to save the labourhood.

4. Height: the height can be adjustable according to the earth situation.

0.7-1.2mm Squre Delta Tube Roll Forming Machine With Elbow Device

Profiles
