G550 Galvanized Sheet Barrel Type Roof Panel Roll Forming Machine 0.15 - 0.4mm

    Buy cheap G550 Galvanized Sheet Barrel Type Roof Panel Roll Forming Machine 0.15 - 0.4mm from wholesalers

    Buy cheap G550 Galvanized Sheet Barrel Type Roof Panel Roll Forming Machine 0.15 - 0.4mm from wholesalers
    • Buy cheap G550 Galvanized Sheet Barrel Type Roof Panel Roll Forming Machine 0.15 - 0.4mm from wholesalers
    • Buy cheap G550 Galvanized Sheet Barrel Type Roof Panel Roll Forming Machine 0.15 - 0.4mm from wholesalers
    • Buy cheap G550 Galvanized Sheet Barrel Type Roof Panel Roll Forming Machine 0.15 - 0.4mm from wholesalers

    G550 Galvanized Sheet Barrel Type Roof Panel Roll Forming Machine 0.15 - 0.4mm

    Ask Lasest Price
    Brand Name : Sussman
    Model Number : SM-RP
    Certification : CE
    Price : negotiable
    Payment Terms : T/T L/C
    Supply Ability : 10 sets per months
    Delivery Time : 60 days after deposit
    • Product Details
    • Company Profile

    G550 Galvanized Sheet Barrel Type Roof Panel Roll Forming Machine 0.15 - 0.4mm

    G550 Galvanized Sheet Barrel type Corrugated sheet making machine for roof panel thickness form 0.2-0.4mm




    Roof Panel Technical Parameter

    NOSpecificationDetail
    1Steel Sheet Thickness0.15-0.4mm (depend on requirement )
    2Hydraulic power4 kw
    3Transmission way1.5 inch double chain
    4Forming Speed12-15m/min
    5Materialgalvanized steel or color-coated steel
    6Main Motor Power5.5 Kw
    7Roller Station2 stations





    Roof Panel Main Components


    S.N

    Equipment name

    Quantity
    1.

    Feeding and leveling device

    1 set
    2.

    Main roll forming machine


    1 set
    3.

    Hydraulic station

    1 set
    4.

    Control system (including control box)

    1 set
    5.

    Spare parts

    1 package














    Application

    Roof Panel, Wall Panel


    Advantage for Roof Panel

    1. Reasonable Price
    2. High Quality
    3. 12 Months Warranty
    4. More Than 10 Years Experience
    5. Durable
    6. Reliable



    Working Flow of Roof Panel

    Feeding and Leveling---Roll forming---Run out tables

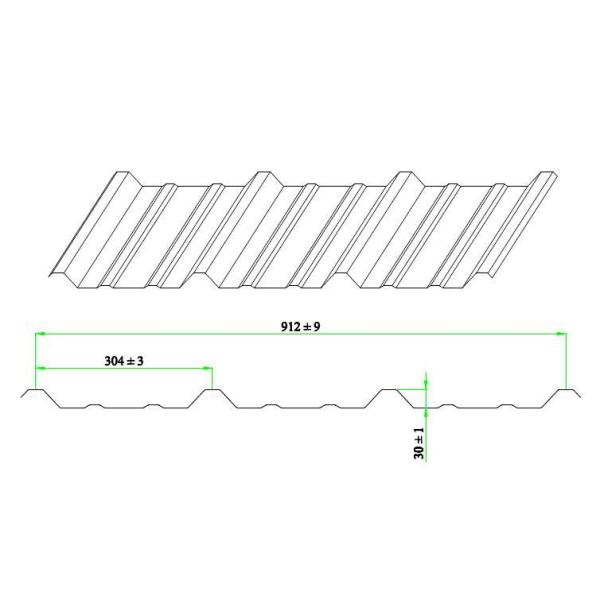

    Profiles of Roof Panel
