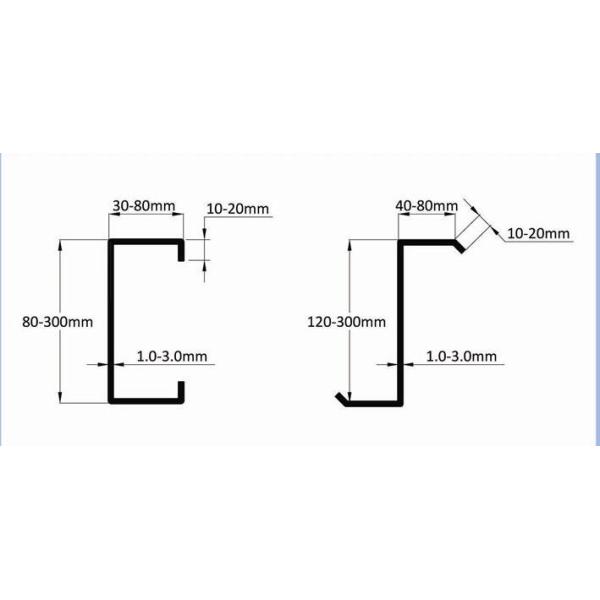

Profile and Drawing


Each part of machine

1. 3T Passive De-coiler
Diameter: 460-520mm expansion.
Expansion: Manually
Capacity: 3000kg per mandrel
Max Coil Width: 500mm

2.Leveling device
Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up ,it can guarantee that the products are neat, parallel and everything is uniformity.
7 rolls leveling, 3 rolls up and 4 rolls down
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface
Leveling Raw Material thickness: 1.5-3.0mm
Max Leveling Raw Material width: 300 mm

3.Pre -Punching and pre-cutting device
Share one Hydraulic station with Hydraulic Cutting Device
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine.
hydraulic station pressure: 20 MPa
motor power of hydraulic station: 7.5KW
Hydraulic coil:46#
Cutting blade material:Cr12

4.Control Box: Panasonic Japan Brand
Adopted PLC , transducer, touch panel from Japan to ensure high speed with stability, precision and lifetime. Other electric element are Schneider
(1) Power supplier: 380 V, 50 Hz, 3Phase (adjusted with the requestment)
(2) Length & quantity measurement automatically.
(3) Length & quantity controlled by PLC.
(4) Length inaccuracy can be amended easily.
(5). Control panel: Button-type switch and touch screen
(6) The language in the touch screen: English and Chinese
(7) Unit of length: millimeter (switched on the control panel)



Our Service

a.Payment type: 30% T/T for advance payment and balance should be paid before delivery.
b.Delivery time: 75days after received advance payment.
Guarantee:
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation.
